# flex几种多列布局

原文地址 (opens new window)

# 基本的等分三列布局

.container{
        display: flex;
        width: 500px;
        height: 200px;
    }
    .left{
        flex:1;
        background: red;
    }
    .middle{
        flex:1;
        background: green;
    }
    .right{
        flex:1;
        background: blue;
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
<div class="container">
    <div class="left"></div>
    <div class="middle"></div>
    <div class="right"></div>
</div>
1
2
3
4
5

# 三列 左中定宽 右侧自适应

 .container{
        display: flex;
        height: 300px;
    }
    .left{
        flex: 0 0 100px;
        background-color: red;
    }
    .middle{
        flex: 0 0 100px;
        background-color: green;
    }
    .right{
        flex:1;
        background-color: blue;
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
  <div class="container">
    <div class="left">qqq</div>
    <div class="middle">qqq</div>
    <div class="right">wwww</div>
</div>
1
2
3
4
5

# 左右固定，中间自适应

.container{
        display: flex;
        height: 300px;
    }
    .left{
        width: 100px;
        background-color: red;
    }
    .middle{
        flex: 1;
        background-color: green;
    }
    .right{
       width: 100px;
        background-color: blue;
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
<div class="container">
    <div class="left">qqq</div>
    <div class="middle">qqq</div>
    <div class="right">wwww</div>
</div>
1
2
3
4
5

缩小浏览器窗口后

# 九宫格布局

 .container{
        display: flex;
        height: 300px;
        width: 300px;
        flex-direction: column;
    }
    .row{
        display: flex;
        height: 100px;
    }
    .left{
        flex: 1;
        height: 100px;
        border: 1px solid red;
    }
    .middle{
        flex: 1;
        height: 100px;
        border: 1px solid green;
    }
    .right{
        flex: 1;
        height: 100px;
        border: 1px solid blue;
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
   <div class="container">
    <div class="row">
        <div class="left"></div>
        <div class="middle"></div>
        <div class="right"></div>
    </div>
    <div class="row">
        <div class="left"></div>
        <div class="middle"></div>
        <div class="right"></div>
    </div>
    <div class="row">
        <div class="left"></div>
        <div class="middle"></div>
        <div class="right"></div>
    </div>
</div>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

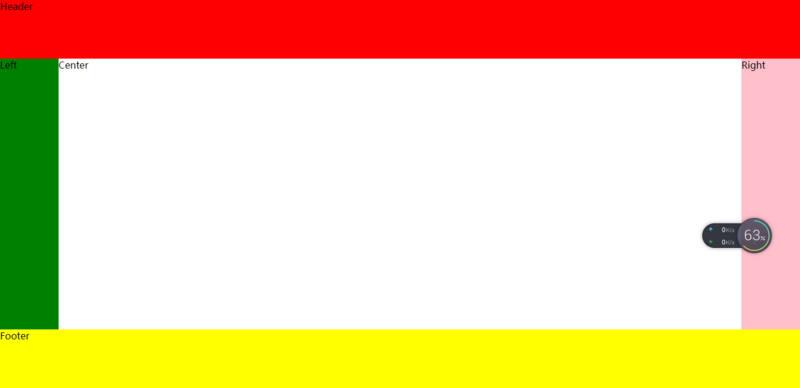

# 圣杯布局

   *{
        margin:0;
        padding:0;
    }
    .container{
        display: flex;
        flex-direction: column;
        min-height: 100vh;
        justify-content: space-between;
    }
    .header{
        background: red;
        flex: 0 0 100px;
    }
    .content{
        display: flex;
        flex:1;
    }
    .content-left{
        flex: 0 0 100px;
        background: green;
    }
    .content-right{
        flex: 0 0 100px;
        background: pink;
    }
    .content-middle{
        flex:1;
    }
    .footer{
        background: yellow;
        flex: 0 0 100px;
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
<div class="container">
    <div class="header">Header</div>
    <div class="content">
        <div class="content-left">Left</div>
        <div class="content-middle">Center</div>
        <div class="content-right">Right</div>
    </div>
    <div class="footer">Footer</div>
</div>
1
2
3
4
5
6
7
8
9

缩小浏览器窗口后
